制氮機設備的安裝對場地的具體要求

制氮機各設備布置順序按工藝流程連接布置。用戶需要提前提出設備安裝廠房尺寸圖和空氣進口、成品氮氣出口位置，ACTFil會根據實際場地條件規劃整套制氮機設備布置連接示意圖。

The layout sequence of each equipment of nitrogen generator is connected according to the process flow. Users need to put forward the size drawing of equipment installation workshop and the location of air inlet and finished nitrogen outlet in advance. Actfil will plan the layout and connection diagram of the whole set of nitrogen generator according to the actual site conditions.

制氮機系統設備一般沒有場地基礎要求，只要廠房內平整地坪就能滿足安裝條件。但對于較大規格的空壓機、壓縮空氣干燥設備等，則按生產廠家要求實施。為了設備維修、清潔方便起見，在空壓機、干燥設備、制氮機、氮氣純化裝置安放位置做一個高于地面10cm的平整臺面則為最佳。

Generally, there is no site foundation requirement for nitrogen generator system equipment, so long as the flat floor in the plant can meet the installation conditions. However, for larger specifications of air compressor, compressed air drying equipment, etc., it shall be implemented according to the requirements of the manufacturer. For the convenience of equipment maintenance and cleaning, it is best to make a flat table 10 cm above the ground in the air compressor, drying equipment, nitrogen generator and nitrogen purification device.

各設備一般沿廠房墻面布置?？諌簷C、冷干機應放在上風口或通風良好的地方，如果空壓機后沒有空氣儲罐，則空壓機與冷干機之間的距離應盡可能大一些，二者之間的管路長度盡可能長一些，以利通過大氣環境降低壓縮空氣溫度。各設備間距離應至少大于1m，各設備與墻的距離應至少大于0.8m，設備的操作面應面向人員方便操作的方位，方便使用者對設備操作和維護、檢修。

The equipment is generally arranged along the plant wall. The air compressor and cold dryer should be placed at the upper air outlet or in a well ventilated place. If there is no air storage tank behind the air compressor, the distance between the air compressor and the cold dryer should be as large as possible, and the pipeline length between the two should be as long as possible, so as to reduce the compressed air temperature through the atmospheric environment. The distance between each equipment shall be at least 1 m, and the distance between each equipment and the wall shall be at least greater than 0.8 M. the operation surface of the equipment shall be oriented to facilitate the operation, maintenance and repair of the equipment by the users.

設備間的管路連接按設備就位后的實際情況而定，推薦管路連接由用戶根據需要制作。所有管路最好采用硬連接方式（螺紋連接或焊接），由專業人員施工，避免發生泄漏現象。

The pipeline connection between the equipment depends on the actual situation after the equipment is in place. It is recommended that the pipeline connection be made by the user according to the needs. It is better to use hard connection (thread connection or welding) for all pipelines, and the construction should be carried out by professionals to avoid leakage.

3. 制氮機設備安裝要求

3. Installation requirements of nitrogen generator

設備安裝由用戶負責，ACTFil負責指導設備安裝。

The user is responsible for the equipment installation, and actfil is responsible for guiding the equipment installation.

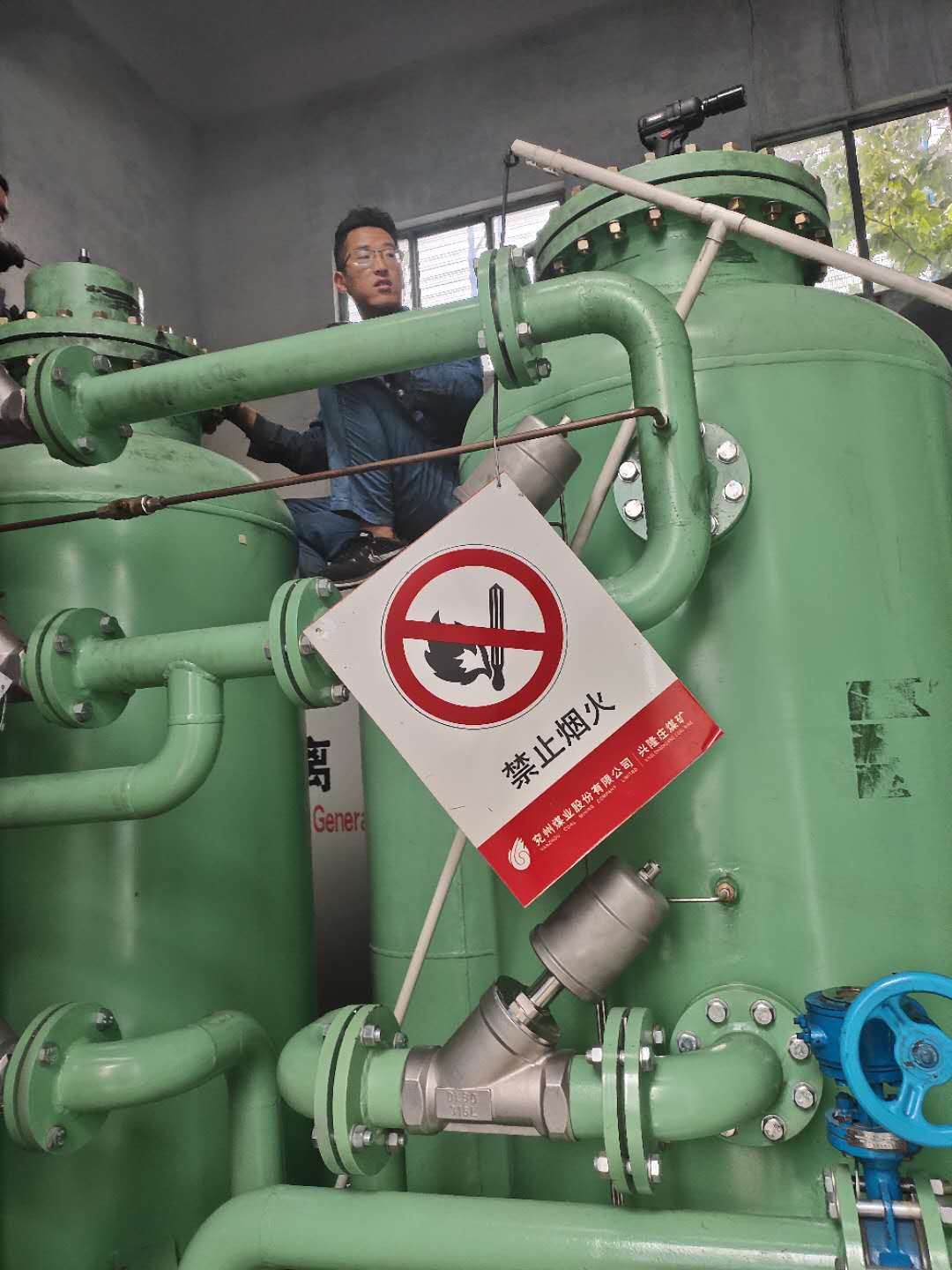

所有工藝設備就位后，設備間的管路根據現場實配。所有管路采用硬連接方式（螺紋連接或焊接），由專業人員施工，避免發生泄漏現象。成品氮氣出口至用氣點之間的管路使用銅管或不銹鋼管為最佳（最次采用新的鍍鋅管），采用焊接方式連接。

After all process equipment is in place, the pipeline between the equipment shall be configured according to the actual situation on site. All pipelines shall be hard connected (threaded connection or welding) and constructed by professionals to avoid leakage. The best way to connect the finished pipe to the outlet is to use the latest stainless steel pipe.

電源和冷卻水引至設備現場，備好配電盤、冷卻水供應設施。

The power supply and cooling water shall be led to the equipment site, and the distribution board and cooling water supply facilities shall be prepared.
